The parotid gland is the hidden indicator of training quality and here is why.
Invisible glands are good
When you don’t see them, it is most likely a good sign. Parotid glands are usually clearly visible on horses that tend to move in a short, tense, and compressed frame. This can be caused by bad training, and some horses may offer this frame themselves – in both cases the horse needs to learn to trust the rider and reach to the bit in a soft and balanced way.
If the frame is relaxed and correct, the parotid glands are normally invisible. If the frame is closed, the parotid gland is pushed out, as seen on the video. The salivary system is sensitive, and it can react to many things. If there are any visible changes they should be checked by a veterinarian to exclude tooth issues, allergic reactions and other problems.
Parotid gland is the most well known

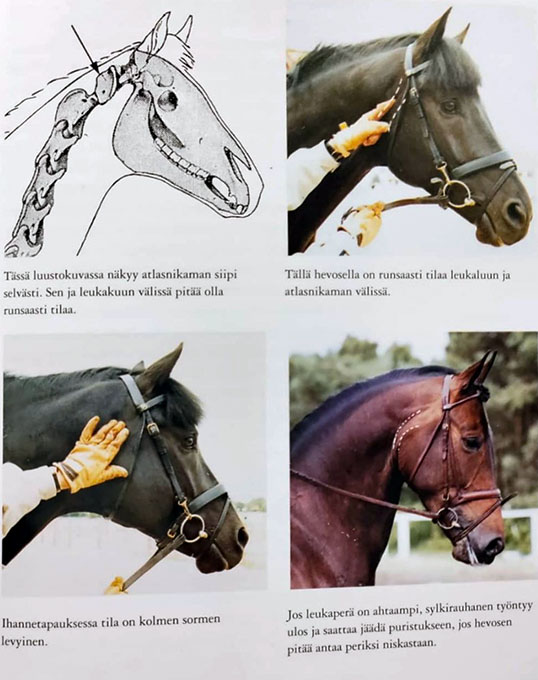

Largest salivary gland, parotid, is easiest to see due to its location. The Parotid gland fills the space between the first cervical vertebra, atlas joint, mandible, and base of the ear.
Because of its location the gland is rather sensitive for the head and neck position that is used in training – if the frame closes the gland has immediately less room than what it really needs. Any compression on the area can easily cause problems in the function of the parotid gland and with time even more visible changes like chronic oedema can occur. Oedema is problematic because it means there is even less room available for the already rather compact structures. The airways and throat area need to be free from any pressure.
Parotid gland is covered with parotidoauricularis muscle, which runs from the ear to the fascia of the parotid gland. The parotid gland is connected to the mouth via the parotid duct. This duct travels medially behind the mandible, it joins the route of facial artery and vein in front of the masseter muscle, and dives into the mouth near the 2nd and 4th cheek teeth. Descriptions of the location have some variation, and with anatomy there is always some individual variation.
This is good to keep in mind when choosing and fitting a noseband – a heavily padded noseband or special design of anatomical bridle could cause pressure towards this important area and pressure on this area in the lower jaw could cause changes in saliva production.
Mandibular salivary gland hides behind
The mandibular salivary gland is located behind and under the parotid gland, closer to the throat and tongue. The duct of mandibular salivary gland travels to the mouth and comes out behind the lower front teeth, under the tongue, at sublingual caruncle. It’s the same area where sublingual salivary gland dives into the mouth. There are also many other salivary glands in the mouth, for example on the lower jaw, lateral side of the mandibular bone, opening directly to the mouth.
Tightness or swelling in the throat latch area is problematic because the space there is very limited, and the area is very sensitive not only physiologically, but also psychologically due to breathing and swallowing. Also even a light yet constant pressure can be uncomfortable, a feeling of having a lump in one's throat is rather disturbing and it can be caused for many reasons. A constant uncomfortable feeling can possibly rise the sympathetic nervous system activity which can be problematic over the course of time.
Contraction and oedema
Tension leads to lack of gliding between the structures (1,2), which can cause compression of the other structures. Oedema has the same effect.
It’s important thing to keep in mind that both contraction or swelling are problematic, the normal functionality of the structures and tissues is compromised. Muscle contraction can be problematic – especially if it lasts a longer period – as it can restrict the function of all structures and tissues due to added pressure. Veins, arteries, and nerves travel above and inside the muscles, contraction causes compression which restricts the function of these structures. In human research (3) there has been suggested that bruxism could cause recurring parotitis, which causes swelling of the glands and with time the ducts can become narrower due to the contraction caused by muscle activity. This could be a very interesting topic for future equine research.
Oedema can also function kind of the same way, because the fluid in the tissues fills all the space it can possibly find, creating pressure. If oedema is present a long time, it starts to change into fibrosis, which will restrict the function of the area from there on. If the free gliding function between the structures is not working normally, it can cause uncomfortable feeling, tightness, and weird pain symptoms. Oedema can easily become chronic, if there is repetitive tightness in the throat area for example in the daily training.
For this reason the correct and variable frame, the quality of rein contact, and the overall balance and suppleness of the horse are very important ingredients of good training.
If the horse is moving in a good manner, there is usually a light lipstick kind of saliva visible on the lips. Traditionally this has been preferable, and it could also suggest that the horses mouth works in a good way. If the mouth is dry or over foaming, there might be a problem you need to address. There are many reasons that can cause dry or overly foaming mouth, beginning from the frame, the overall training, and the fit of tack. How the body works can be seen on the mouth and the other way around.
Lack of space
If the frame is closed, it has several direct effects on the salivary gland function. Closing the frame forces the parotid glands outwards over the mandibular creating significant tension on the superficial and deeper structures, at the same time as the parotid duct gets less or no room to function. Overall tension on the throat area, below the tongue, or on the cheeks causes lack of space that affects the function of the glands. Tension at the throat or tongue affects the breathing directly.
If the contact is good, the frame neutral and in front of the vertical and the tack is bridle is fitting well, and if the rider is having a good communication with the horse, there should be no reason to worry about the glands. If there is still work to be done to learn the horse a correct frame, make sure the work is logical and not depending on who is watching your riding.
In my work I meet many riders who say that they have to ride very differently and in different frames depending on the trainer. This kind of variation can easily keep the problem alive for longer than necessary. Keep your riding simple and use exercises and frames that are ergonomic and fair for the horse, that will lead to good result.
In the next part we will look closer at how the rider can help the normal function of the salivary glands.
by Niina Kirjorinne for Eurodressage
Photos © Kirjorinne - Astrid Appels - Silke Rottermann
Sources and further reading:
1. Somatic dysfunction and fascia’s gliding-potential.
Chaitow, L. (2014). Journal of Bodywork and Movement Therapies, 18(1), 1–3.
2. The fasciacytes: A new cell devoted to fascial gliding regulation
Stecco, C., Fede, C., Macchi, V., Porzionato, A., Petrelli, L., Biz, C., De Caro, R. (2018). Clinical Anatomy, 31(5), 667–676.
3. Bruxism-induced parotitis: A retrospective case series analysis
Teymoortash, A., Hoch, S., Weber, D., Wilhelm, T., & Günzel, T. (2018). Bruxism-induced parotitis: A retrospective case series analysis. CRANIO®, 1–7.
4. Dressage with Kyra - book to be ordered through amazon and other major book outlets.
